1. Introduction:
Krishi Vigyan Kendra, Athiyasan, Nagaur-I was established in the September 1992. The Nagaur district occupies prominent place in the agro-climatic zone-II a, “Internal drainage dry zone”. It covers total geographical area of 17,67,631 ha. The number of 1,575 inhabited villages in the fourteen blocks of the district. Operational area of this KVK encompasses 7 Blocks namely Nagaur, Mundwa, Merta, Khinvsar, Riyanbadi, Ladnu & Jayal. The total population of the district is 33.07 lac with 21.16 per cent scheduled castes and 0.31 per cent scheduled tribes. The sex ratio in the district is 950 and density of population is 187 per square km. The population of the Nagaur district is predominantly rural based with 76.14 per cent of the total population living in villages. Literacy rate is 62.80 per cent which is far below the State average (66.11%).
Nagaur district has a dry climate with a hot summer. Sand storms are common in summer. The district's climate is marked by extreme dryness, large variations of temperature & highly irregular scanty rainfall patterns. The maximum temperature recorded in the district is 47oC with 0oC as the lowest temperature. The average temperature of the district is 23.33oC. The winter season extends from mid-November till the beginning of March. The rainy season is relatively short, extending from July to mid-September. The average rainfall in the district is 36.16 cm & 59% relative humidity. The net sown area of the district is 12,15,515 ha which is 67 per cent of the total geographical area as against the State average of 49.9 per cent. The total cropped area of the district is 14,18,834 ha. The net irrigated area is 2,77,000 ha and rainfed area is 9,38,515 ha in the district.

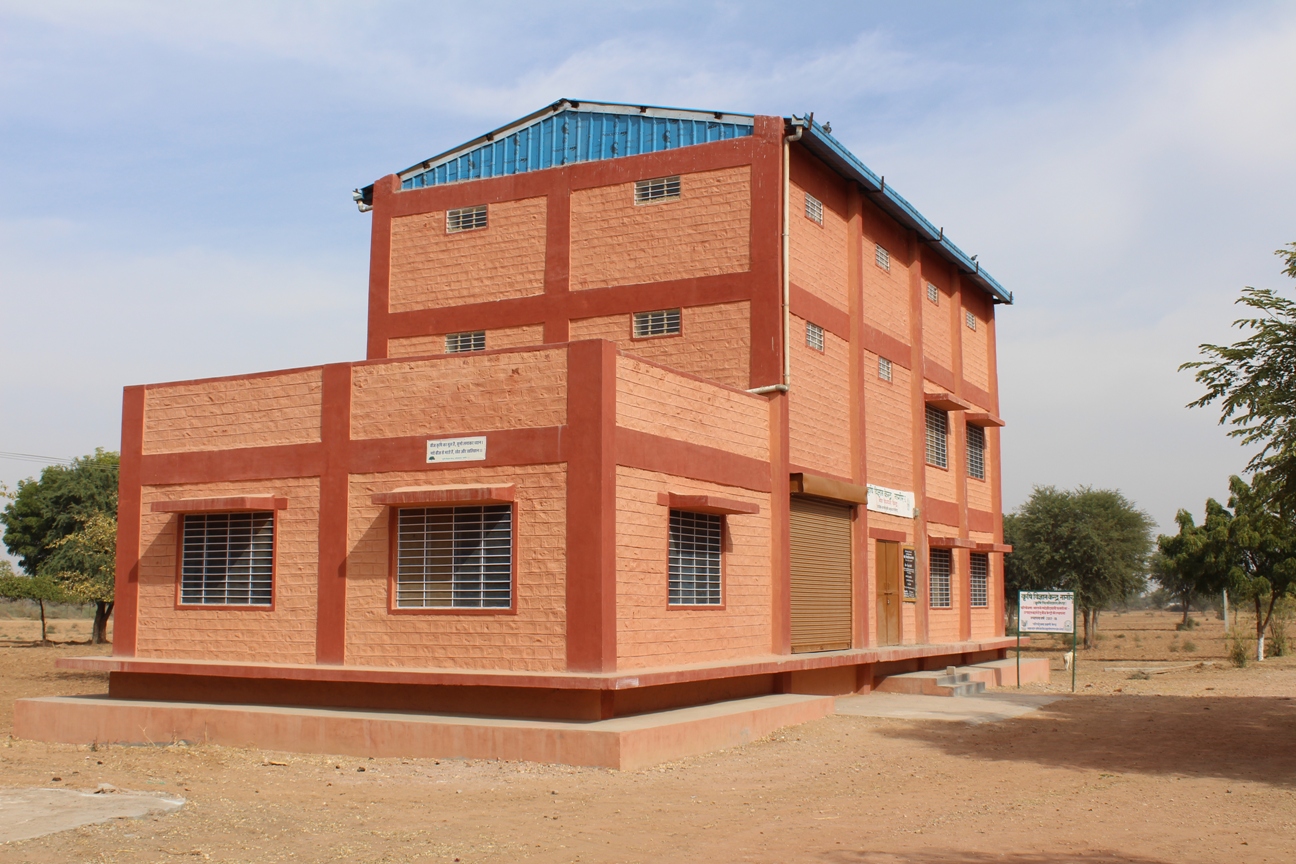

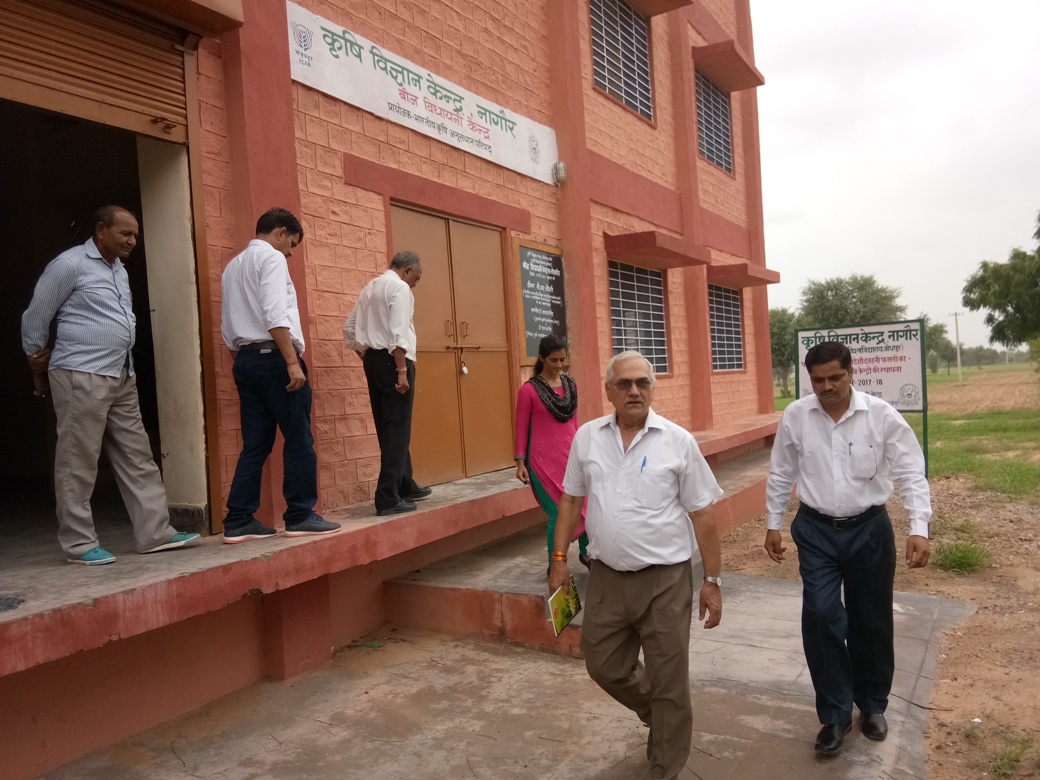

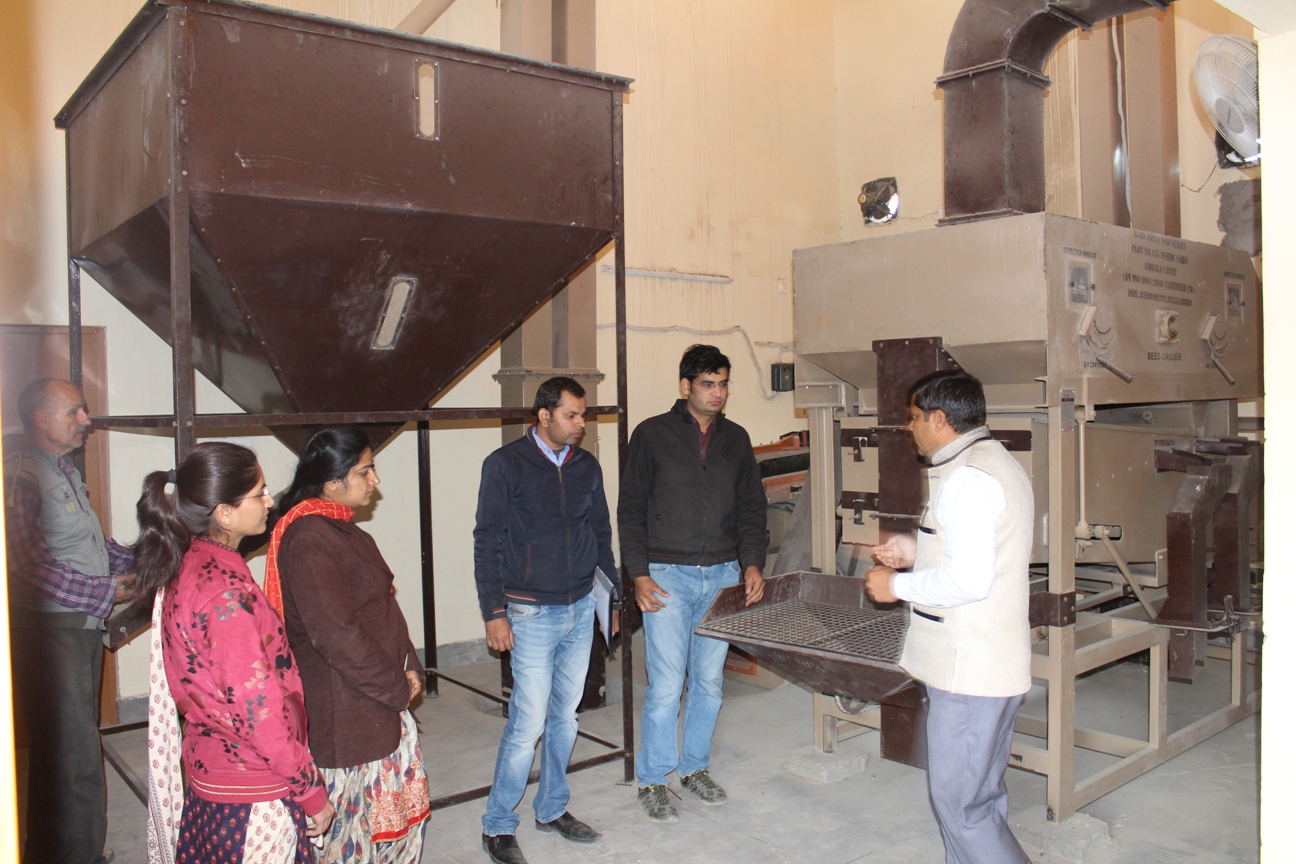

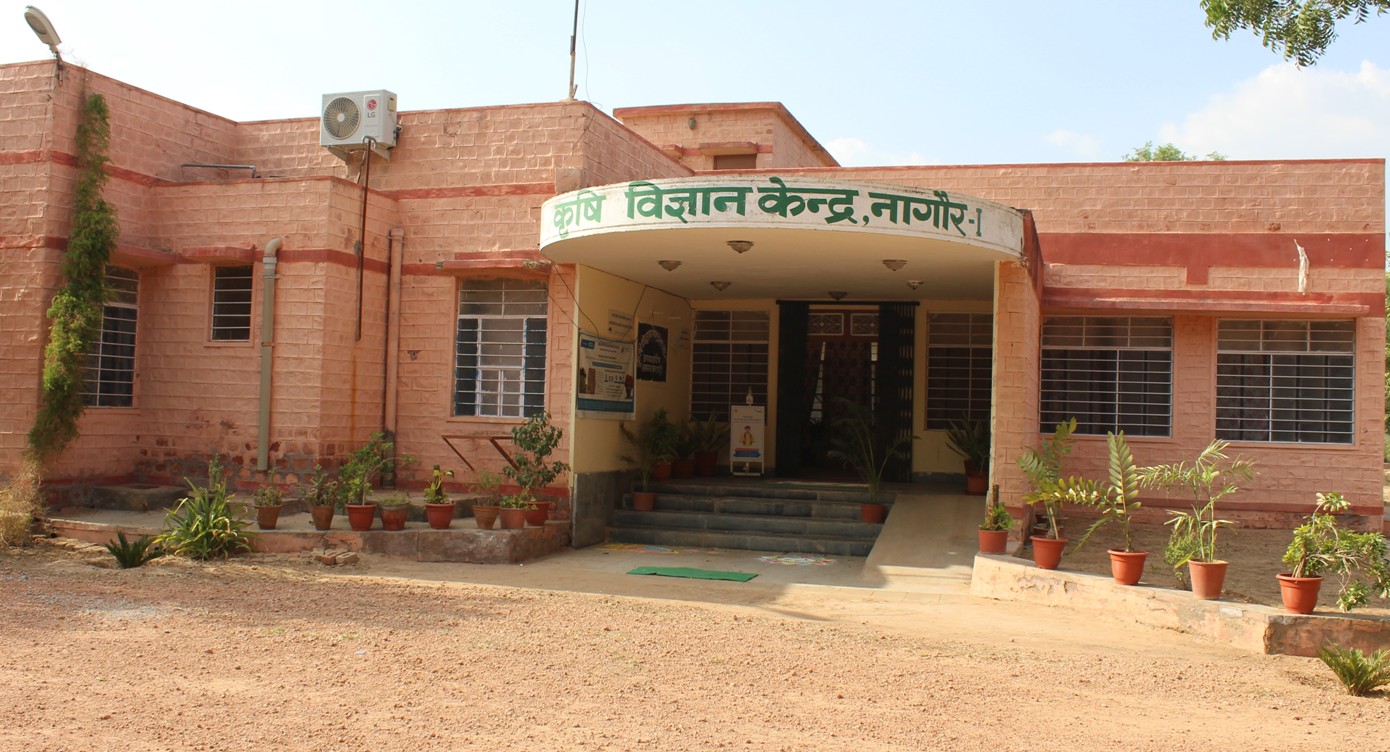

KVK, Athiyasan Nagaur I building	Seed Processing Plant at KVK, Nagaur I

The livestock population of the district is 31.09 lac, out of which cattle is 4.82 lac, buffalo 5.57 lac, sheep 5.85 lac and goat 14.85 lac. Nagauri breed of cow and Nagauri bull is pre-dominant and famous in nagaur district. Decreasing water table, saline and alkaline soil & underground water, blight & wilt in cumin, gummosis & blight in fennel, leaf curl in chilies, destruction of crops by wild boars and blue bulls are some major problems of the district. The KVK is an innovative transfer of technology institute responsible for identifying and developing new technologies, according to local need and potential to increase the agriculture production. KVK also provides the basis for agro-based agriculture development to increase per unit production under Crops, Livestock, Horticulture and allied Agriculture enterprises and to help the farmers in improving their living standard.
KVK is situated at village Athiyasan on Ajmer Road, 7 km away from District Headquarter and linked with National Highway 58. The farm is having land area of 20 ha out of which 15 ha is cultivated and orchard of ber, soil water testing laboratory, roof rain water structure, Azola Unit, vermi-compost unit, crop cafeteria unit, etc. Besides administrative building, two farmers’ hostel and six residential quarters for staff are also available.
At present, Sr. Sci. and Head along with four SMS (Agronomy, Plant Protection, Extension education & Home Science), two PA (Lab Technician and Computer Operator), one Farm Manager, one Stenographer, two Driver and one Support Staff are working at KVK, Athiyasan, Nagaur-I.
Table 1: Area and Productivity of major crops in Nagaur District in 2015-16 & 2019-20*

2. Training Achievements:
On Campus Trainings: In all 83 on campus training were organized and 2266 participants were trained on different aspects of IFS i.e. water management, IPM, INM, IDM during 2015-16 to 2019-20. Trained farmers, especially youths were surveyed through follow-up to see impact of the trainings given to them at Institute hq. Survey indicated that more than 18-20 per cent of the farmers trained have established models like: goatery, vermi-compost, ber orchard, water harvesting system etc. at their farm.



Training on water management in crops, Date- 21/01/2020, Venue: KVK, Nagaur-I	Training in IPM  in Kharif crops, Date- 21/06/2019, Venue- KVK, Nagaur-I

Off Campus Trainings: Krishi Vigyan Kendra, Athiyasan, Nagaur I organized total 108 off campus trainings and trained 2183 participants during 2015-16 to 2019-20. Off Campus Training were conducted at innovative farmers’ farm.  These trainings were mainly focused on management of Kasuri methi, water management, dry land farming and management of saline- alkali soil and other interventions which can help farmers to increase his income with sustainability of resources.

Women empowerment through food processing, Date- 26/07/2019,Venue:	Weed management in Pearl millet Date-06/08/2019, Venue- Village: Dhehari (Jayal) Nagaur-I

Sponsored Trainings: Twenty seven trainings sponsored by WDRA, ATMA, NABARD and Agriculture Department on Bee keeping, safe storage of cereals and pulses in go-down, dry land farming were held and 779 farmers and rural youth were trained during 2015-16 to 2019-20.

Ware House Awareness Programme (WDRA), Date- 24/02/2020, Venue- KVK, Nagaur-I	Beekeeping for Rural Scheduled Caste Youth, Date- 06/02/2020, Venue- KVK, Nagaur-I

Table 2:  On Campus, Off Campus and Sponsored agencies training organized for farmers

Year	On Campus Training		Off Campus Training		Sponsored Training
	No.	Participants	No.	Participants	No.	Participants
2015-16	19	463	23	418	-	-
2016-17	19	489	21	453	6	173
2017-18	15	555	12	353	8	225
2018-19	15	255	24	319	10	256
2019-20	15	504	28	640	3	125
Total	83	2266	108	2183	27	779

3. Frontline Demonstrations:

a. FLDs on Pulses (NFSM): Krishi Vigyan Kendra, Athiyasan conducted FLDs on Green gram, Moth bean and Chickpea during 2015-16 to 2019-20. During last five years, chick pea variety GNG 1581 recorded additional net return of Rs 9,130 to 16,006/- per ha over local chickpea crop. Similarly, Green gram variety GM 4 was also found popular as it gave net return of Rs. 48,050/- per ha with additional net return of Rs 10,235/- per ha during 2015-16.  Variety GaM 5 which was also found remunerative (Rs 10,076/- per ha) in FLDs laid out in 2019-20.

Table 5:  Seed yield and economics of FLDs on other crops laid out at farmers’ fields

Year & No.	Variety	Seed yield (q/ha)		Per cent increase over FP	Net Return (Rs/ha)		Add. Net Return over FP (Rs/ha)	Site/Village
		Farmer practice	Improved Practice		Farmer practice	Improved Practice
Cluster bean
2015-16 (20)	RGC 1066	679	801	18.0	14,165	17,735	3,570	Athiyasan (Nagaur)
Pearl millet
2018-19 (20)	MPMH 17	888	1,065	19.9	8,559	12,194	3,635	Budhi (Nagaur)
2019-20 (25)	MPMH 17	1,151	1,421	23.5	13,678	19,061	5,383	Malgaon (Nagaur)
Cumin
2018-19 (10)	GC 4	725	945	30.3	76,030	1,07,000	30,970	Dhehari (Jayal)
2019-20 (10)	GC 4	799	1,052	31.7	89,270	1,27,091	37,821	Balaya (Nagaur)
Chickpea
2018-19 (25)	GNG 1581	1,560	1,920	23.1	36,960	51,420	14,460	Pipliya (Khinwsar) and Shyamsar (Nagaur)
2019-20 (25)	RSG 974	1,540	1,980	28.6	48,159	69,069	20,910	Inana (Nagaur) and  Didiya kalan (Jayal)
Isabgol
2018-19 (25)	RI 1	1,024	1,291	26.1	67,842	92,164	24,322	Dhehari (Jayal)

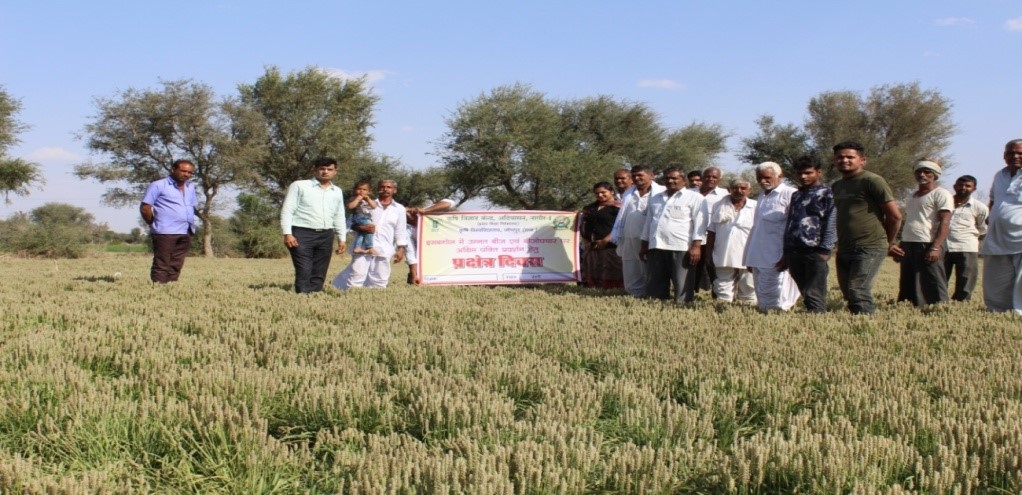

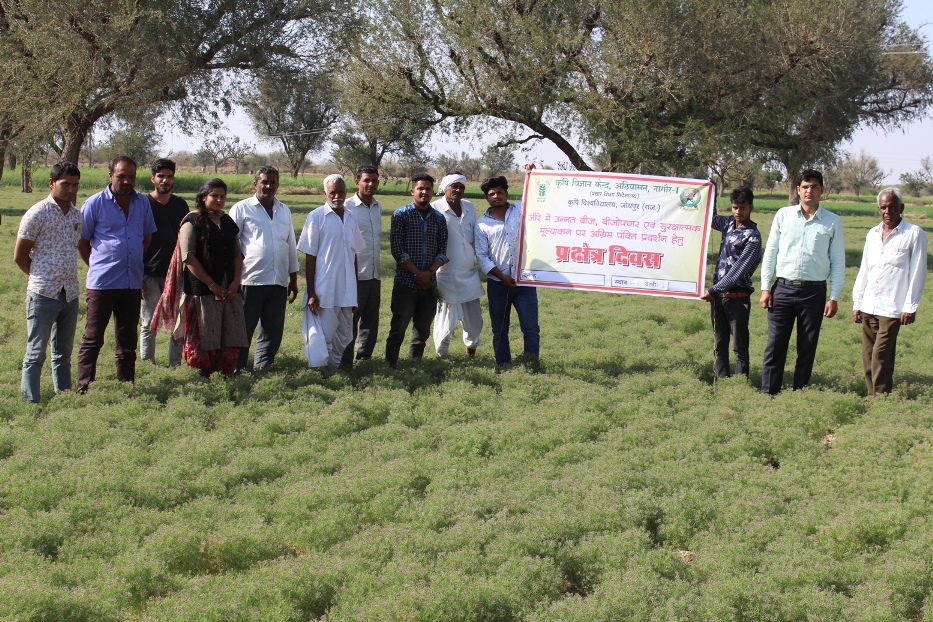

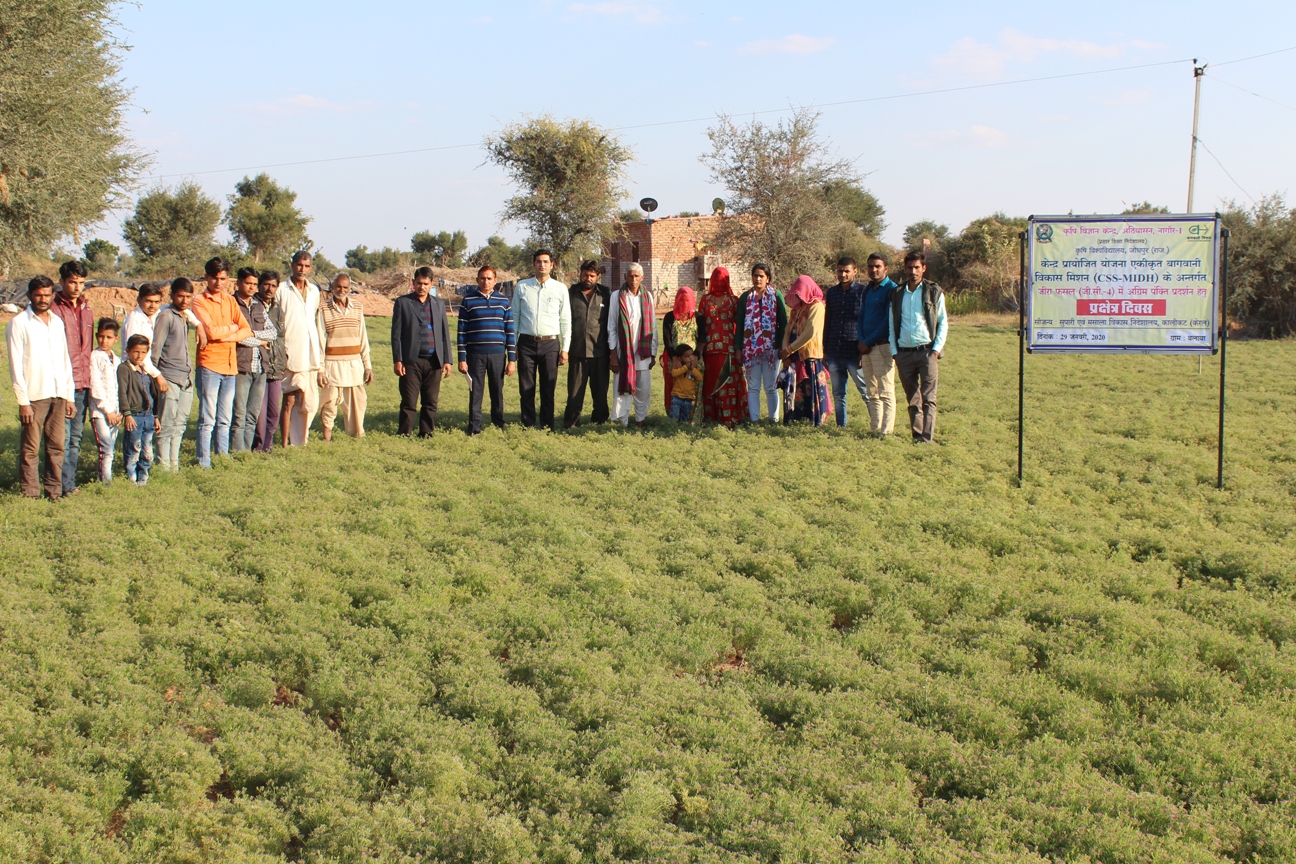

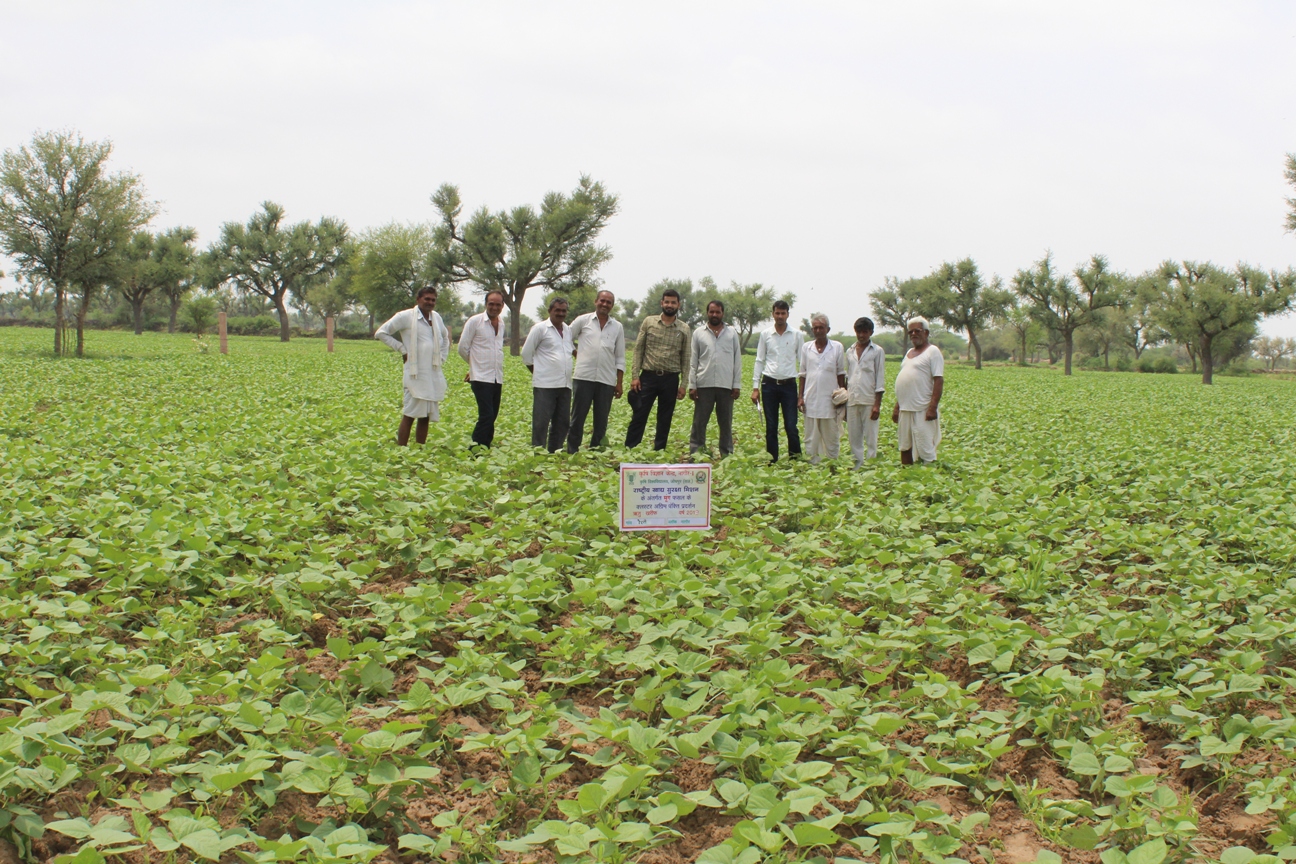

Field day on FLD-Cumin, Dated-29/01/2020 and Venue- Village: Balaya (Nagaur)	Field day on FLD-Pearl millet, Dated: 01/10/2019, Venue- Village: Malgoan (Nagaur)

d. FLDs on Nutri-garden:
Krishi Vigyan Kendra, Athiyasan, Nagaur-I conducted FLDs on Nutri-garden during the period of 2018-19 to 2019-20 to increase awareness of green vegetable consumption amongst rural community. Per capita vegetables consumption of farm families were increased by 156-200 per cent in the season 2018-19 and 2019-20 over their vegetable consumption before this intervention.

Field day on FLD (Nutri-garden),  Dated-16/02/2019,Venue- Village: Dhehari (Jayal) (Nagaur -I)	Field day on FLD (Nutri-garden), Dated- 30/09/2019, Venue- Village: Rol (Jayal) (Nagaur I)

4. On Farm Trials:

Title: Evaluation of newly released varities of Mustard crop
Result: Mustard variety RH 749 gave seed yield and net return of 19.0 q/ha and Rs 37,100 /ha respectively. The seed yield of this variety was higher over variety RNG 145 by 22.7 percent.

Title: Evaluation of high yielding varieties of mung bean
Result: GM- 6 mung bean variety recorded 11.10 q/ha seed yield and net return of Rs.58,470/ha. The seed yield of mung bean variety GM 6 was 30.0 per cent higher over GaM 5.

Title: Evaluation of foliar application of Azoxystrobin+Tebuconazole for management of blight & wilt in cumin
Result: Foliar application of Azoxystrobin + Tebuconazole @ 1.0 l/ha farmers recorded maximum net return of Rs. 1,02,717/- per ha with B:C ratio of 4.10. as against net return of Rs. 74,950/- per ha & B:C ratio of 3.29 recorded with foliar application of spray of carbendazim 2 g/l (Farmers Practice).

Title: Management of pod borer, Helicoverpa armigera damage in chickpea crop through pheromone trap
Result: Installation of Pheromone trap (10/ha) and spray of HaNPV for management of pod borer, recorded maximum net return of Rs. 67,036/- per ha with B: C ratio of 3.26 as against net return of Rs. 44,525/- per ha & B: C ratio of 2.60 recorded under no use of pheromone and HaNPV.

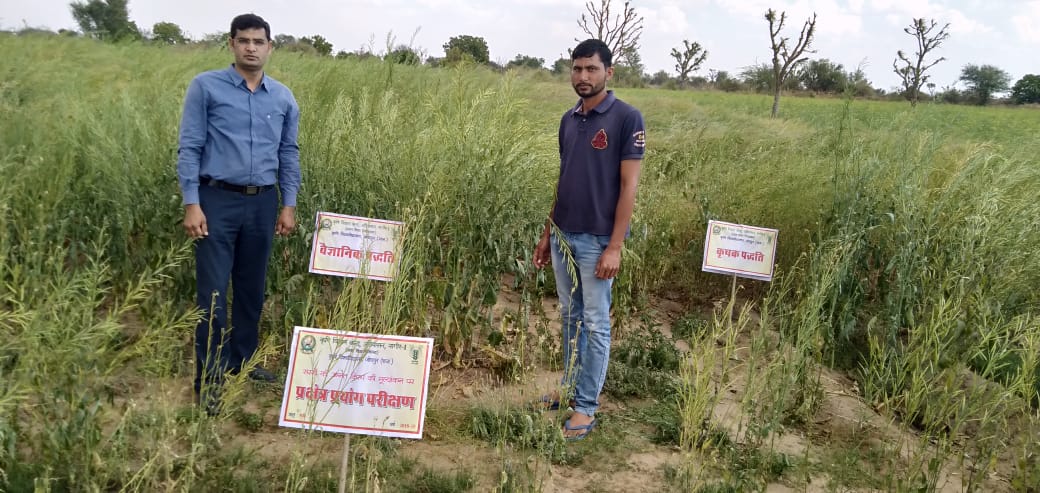

Evaluation of Improved variety RH-749 of Mustard crop, Date-27/02/2019, Venue- Village: Khajwana, Mundwa, Nagaur	Evaluation of High Yielding Variety GM-6 of Mung bean crop, Date-30/09/2019, Venue- Village: Rol, Jayal, Nagaur

5. Villages Adopted and Activities carried out in village:

Village- Dhehari, Tehsil- Jayal and Village- Roon, Tehsil- Mundwa were adopted by the KVK, Athiyasan, Nagaur I.  The purpose of village adoption was to enhance their family income by implementing new agro-techniques in their farming. At first, base line survey was conducted by a team of Scientists along with the needs and categorization of farmers. A detailed plan of work was chalk out and executed to improve the day to day living of farmers through awareness programme on Soil health, Integrated Nutrient and Weed Management, Efficient water management, Integrated Pest Management, Post-harvest management and Value addition, Storage, Marketing etc. FLDs were laid out soil and water testing was done and field days  and interaction were conducted on various crop management practices, water harvesting techniques, seed storage, micro irrigation system, value addition and post-harvest management etc.

Selected innovative farmers were also brought to KVKs to attend different programmes implemented by KVKs. Pradhan Mantri Krishi Sinchayee Yojana, Paramparagat Krishi Vikas Yojana, Fasal Bima Yojna, National Agriculture Market (e-NAM) schemes were explained to the farmers. Farmers were also apprised with the techniques to enhance resource use efficiency by using right amount of inputs at right time at right place. In all 255 demos. of improved varieties of Kharif and Rabi crops were laid out in the 125 ha area which improved the overall income and knowledge levels of farmers of adopted villages.

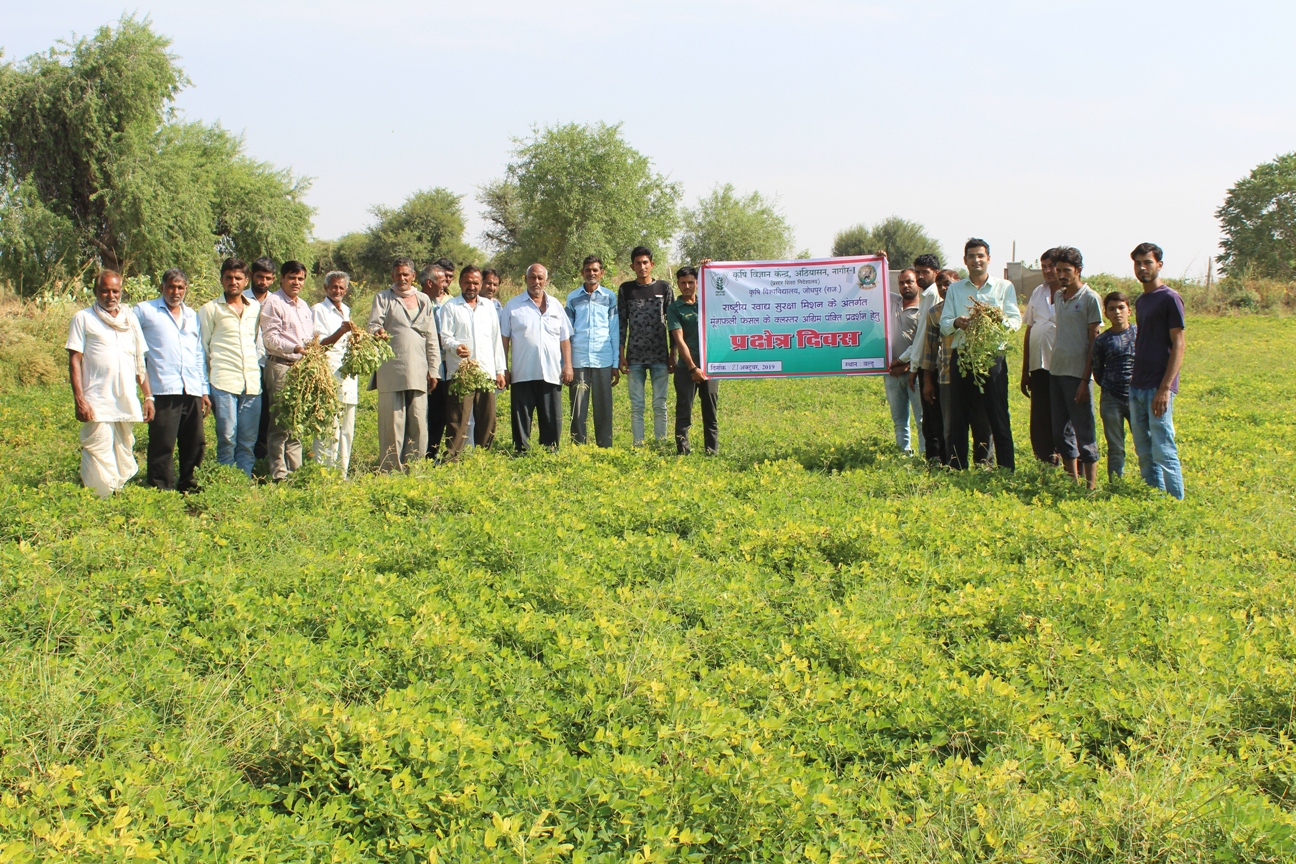

Field day on FLD-Cumin, Dated-25/02/2019,  Venue- Village: Dhehari, Jayal, Nagaur	Field day on FLD-Isabgol, Dated- 02/03/2019 Venue- Village:  Dhehari, Jayal, Nagaur

6. Seed Production:

Table 6: Seed production at KVK Farms

Year	Crops	variety	Quantity (q)
2015-16	Green gram, Guar	GM4, RGC 1066 RGC1003, RGC 1017	42.65
2016-17	Green gram	GM 4, IPM 2-3	16.14
2017-18	Green gram, Cumin	GM 4, GC 4, GaM 5, MH 421	10.89
2018-19	Green gram	MH 421, GaM 5	6.73
2019-20	Taramira	RTM 314	43.00
Total			119.41

7. Other Products: Nil

8. Special programmes (National levels programmes):

Jai Shakti Abhiyan:  A Kisan mela was organized at KVK, Athiyasan, Nagaur-I on 3rd September 2019 under Jal Shakti Abhiyan in which total 635 participants were involved. District Collector Nagaur Shri Dinesh Kumar Yadav was the chief guest of the programme. Farmers were apprised with different methods to save and conserve water.



Seed Hub Project: ICAR, New Delhi has sanctioned a project on “Creation of Seed Hub for increasing indigenous production of pulses in Rajasthan and Haryana” in financial year 2016-17.The objective of this project was to produced seed of improved varieties of Green gram, Moth bean and Chickpea and other pulses through Seed production farms of KVKs, Research Center and under farmer participatory mode at farmers’ fields.  The seed hub was established at Nagaur I during the second phase and an amount of Rs 150/- lacs were sanctioned, out of which Rs 50 Lacs was utilized for the creating seed production infrastructures & seed processing facilities during 2016-17. Rs 100 Lacs was allotted for revolving fund to meet out the various expenses for production, procurement and processing of seed.

Table 7: Seed production under seed hub project done at various centers during 2016-17 to 2019-20

Year	Crop	Variety	Seed produced (q)	Total quantity (q)
2016-17	Green gram	GM 4, IPM 2-3	140,10	150
2017-18	Green gram	GaM 5, MH 421, GM 4, Satya	81, 52,10,27	170
	Moth bean	RMO 435	30	30
2018-19	Green gram	GM 6, GaM 5, MH 421	10, 83, 18	111
	Moth bean	RMO 435	08	08
	Chickpea	GNG 1958	25	25
2019-20	Green gram	GM 6, GM 4, MH 421	40.01, 66.04, 23.00	129.05
	Moth bean	RMO 435	0.69	0.69



Processing unit of seed hub Date: 19.12.2018, Venue: KVK, Athiyasan, Nagaur	Visited by Dr. S.K. Dalal, DAC&FW, New Delhi Date: 25.07.2018, Venue: KVK, Athiyasan, Nagaur

9. Kisan Melas: Krishi Vigyan Kendra, Athiyasan, Nagaur-I organized Kisan Mela in every year and actively participated farm women and farmers. KVK, scientific staffs delivered lectures to farmers in technical session of kisan mela in different topics namely improved cultivation of crops, integrated pests & diseases management, different government schemes, value addition and women empowerment and solved the problems of farmers.

Kisan Mela Date-25/03/2018, Venue- KVK, Athiyasan, Nagaur-I	District level Kisan Mela Date- 24/01/2019, Venue- KVK, Athiyasan, Nagaur-I

10. Other activities of KVK (No.):

Year	Field Days	Exhibitions	Advisory Services	Film Shows	Diagnostic Visits	Farmer Scientist Interactions
2015-16	5	2	12	14	1	3
2016-17	8	2	14	11	2	7
2017-18	8	5	1124	19	3	13
2018-19	15	4	740	21	13	19
2019-20	17	11	3075	26	25	21
Total	53	24	4965	91	44	63

11. Publications:

Year	Extension Manuals	Booklets	Popular Articles	Research Papers	Pamphlets	Leaflets
2015-16	-	-	-	-	08	03
2016-17	-	-	02	-	05	07
2017-18	-	-	-	-	02	08
2018-19	01	06	06	03	04	11
2019-20	02	02	04	03	13	17
Total	03	08	12	03	32	46

12. Five major revolutions happened in the jurisdiction area of KVK:

• Participatory mode seed production programme at farmers’ field was initiated from 2018-19 under seed hub project sanctioned by ICAR, New Delhi for providing good quality seed to the farmers of Nagaur District. During 2019-20 seed production programme of different pulses have been launched under farmer participatory mode in 68 ha in collaboration with RSSC, Nagaur. This programme will improved seed replacement rate of the farmers.
• Implementation of FLDs on Pulses (NFSM) resulted in enhancement of area, production and productivity of green gram resulting increase in net income of farmers. The farmers of Merta tehsil in Nagaur District are harvesting as high as 18-20 q seed per ha from rain-fed green gram.
• The trainings on the theme water conservation conducted on and off campus by KVK, Nagaur resulted in increase in number of rain water harvesting structures at farmers’ fields.
• The cultivation practices of Nagauri methi were disseminated to the farmers through on and off campus training resulting improvement in quality and productivity of Nagauri methi. This intervention was very useful and provided good support to the farmers. Because of the soil and agro climatic condition existing in Jayal and surrounding area, the quality of Nagauri methi produced from this area is very superior.

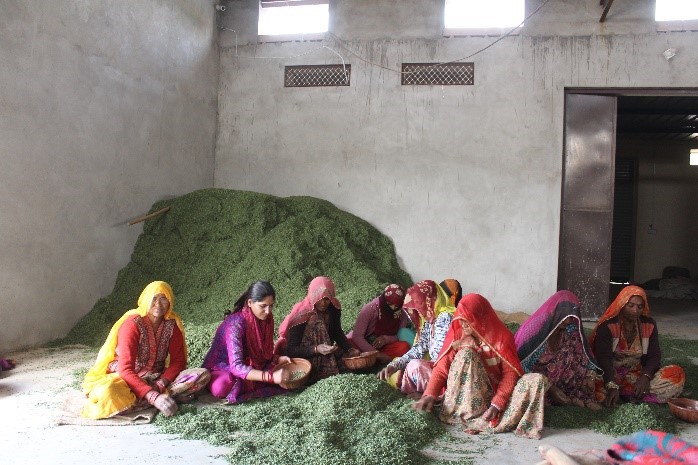

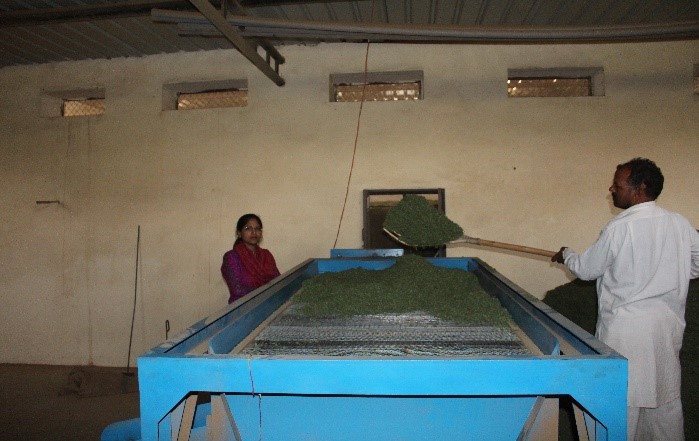

Processing of Nagauri methi by farmers in Jayal Tehsil of Nagaur District	Cleaning and drying of Nagauri methi under supervision of SMS Home Science, KVK, Athiyasan, Nagaur-I

13. Other significant achievements:

• Civil work of seed hub project and installation of seed processing unit at KVK, Athiyasan, Nagar-I was done timely.
• Soil testing laboratory at the Institutes started functioning with the facility of testing of major as well as micro- nutrients of the soil samples for farmers on cost basis.
• Drinking water pipeline was sanctioned by Hon’ble Vice Chancellor, AU, Jodhpur and Rs 10.00 lacs were granted for this work. PHED, Nagaur installed three inch diameter pipeline from its reservoir to the institute and regular supply of water is available.
• Sh. Ummed Singh Budhee and Sh. Multana Ram Choudhary, progressive farmers were awarded “Pandit Deen Dayal Upadhyay Antodaya Award” for innovative practices of Ber cultivation through rain water harvesting and protected cultivation respectively on the eve of birthday centenary celebration of Pandit Deen dayl ji on dated 25.09.2016 by AU, Jodhpur and ATARI, Jodhpur.
• Sh. Mayur Lalwani, Young Agri-entrepreneur received recognition from Hon’ble Minister Sh. C.R. Choudhary, Minister of Consumer Affairs, Food & Public Distribution, by AU, Jodhpur.
• Three batches of 15 days fertilizer certificate course with total no. of 90 farmers and Dealers organized successfully. Revenue of Rs 2.33 lakhs was generated for KVK, RF through these trainings and many trainees stated own business of fertilizer sale.
